IHLP-1212AB-A1 1.0 20% EV E3

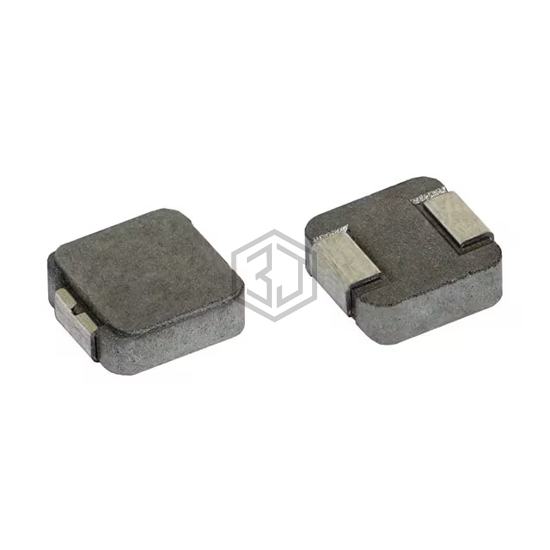

IHLP1212ABEV1R0MA1 is a Fixed Inductors manufactured by Vishay Dale. IHLP-1212AB-A1 1.0 20% EV E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.13 A.
In Stock: 4,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.13 A |
| Current - Saturation (Isat) | 5.85A |
| Shielding | Shielded |
| DC Resistance (DCR) | 53.72mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 86MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for IHLP1212ABEV1R0MA1 and get a quote within 24 hours.
