IHLE-5050FH-5A 10 20% ER E3

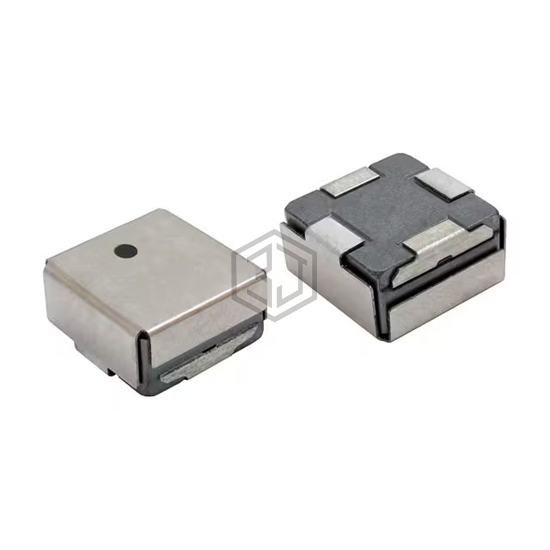

IHLE5050FHER100M5A is a Fixed Inductors manufactured by Vishay Dale. IHLE-5050FH-5A 10 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 12.1 A.
In Stock: 399
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12.1 A |
| Current - Saturation (Isat) | 7.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 17.76mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 10.7MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.550" L x 0.535" W (13.97mm x 13.59mm) |
| Height - Seated (Max) | 0.268" (6.80mm) |
Submit your RFQ for IHLE5050FHER100M5A and get a quote within 24 hours.
