IHLE-4040DD-5A 4.7 20% ER E3

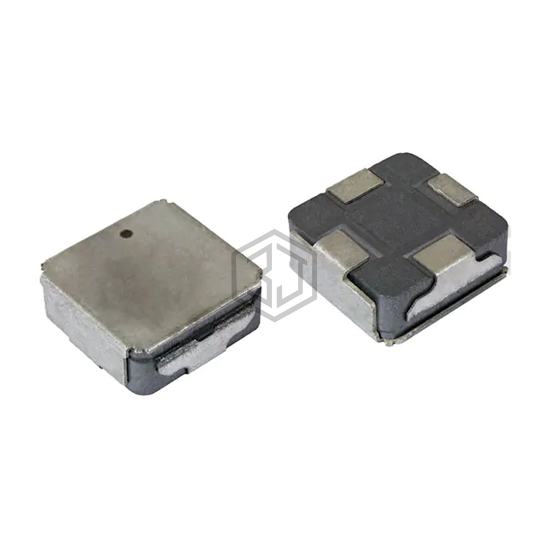

IHLE4040DDEW4R7M5A is a Fixed Inductors manufactured by Vishay Dale. IHLE-4040DD-5A 4.7 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 9.8 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal Composite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9.8 A |
| Current - Saturation (Isat) | 9.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 15.32mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 20.1MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.430" L x 0.426" W (10.92mm x 10.82mm) |
| Height - Seated (Max) | 0.174" (4.42mm) |
Submit your RFQ for IHLE4040DDEW4R7M5A and get a quote within 24 hours.
