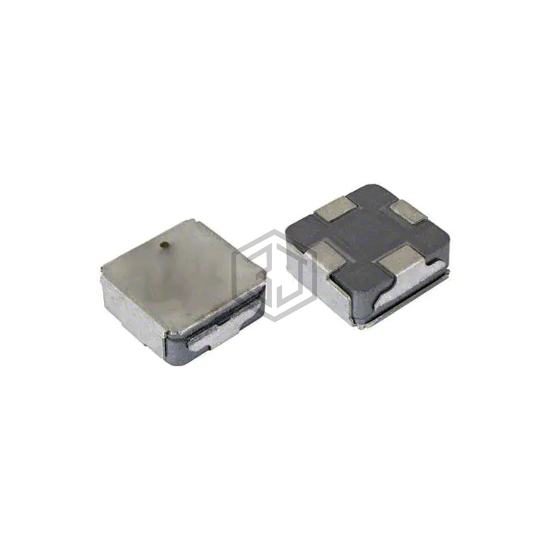

FIXED IND 1UH 23.5A 3.07MOHM SMD
IHLE4040DDER1R0M5A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1UH 23.5A 3.07MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case 4-SMD, current rating (amps) 23.5 A.
In Stock: 369
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 23.5 A |
| Current - Saturation (Isat) | 24A |
| Shielding | Shielded |
| DC Resistance (DCR) | 3.07mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD |
| Supplier Device Package | - |
| Size / Dimension | 0.426" L x 0.426" W (10.82mm x 10.82mm) |
| Height - Seated (Max) | 0.169" (4.30mm) |
Submit your RFQ for IHLE4040DDER1R0M5A and get a quote within 24 hours.
