IHLE-2020CD-5A 1.5 20% ER E3

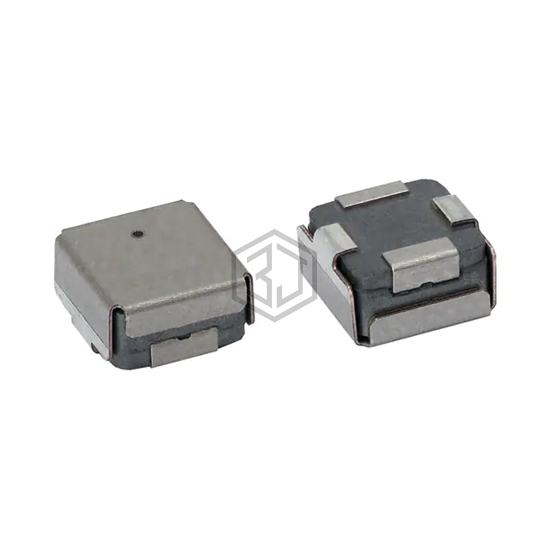

IHLE2020CDER1R5M5A is a Fixed Inductors manufactured by Vishay Dale. IHLE-2020CD-5A 1.5 20% ER E3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 7.9 A.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron Powder |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.9 A |
| Current - Saturation (Isat) | 9.4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 19.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 49.2MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.232" L x 0.216" W (5.89mm x 5.49mm) |
| Height - Seated (Max) | 0.135" (3.43mm) |
Submit your RFQ for IHLE2020CDER1R5M5A and get a quote within 24 hours.
