HIGH CURRENT THROUGH-HOLE INDUCT

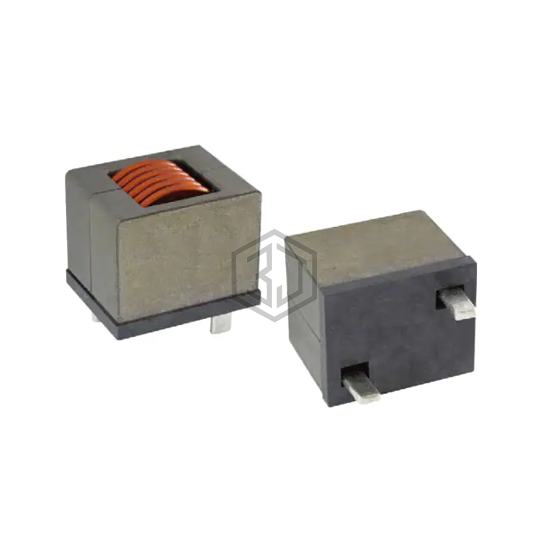

IHDM1008BCEV3R0M20 is a Fixed Inductors manufactured by Vishay Dale. HIGH CURRENT THROUGH-HOLE INDUCT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 180°C, package / case Vertical, 2 PC Pin, current rating (amps) 57 A.
In Stock: 145
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Iron Powder |
| Inductance | 3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 57 A |
| Current - Saturation (Isat) | 169A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.95mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 48MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 2 PC Pin |
| Supplier Device Package | Vertical, 2 PC Pin |
| Size / Dimension | 1.005" L x 0.816" W (25.53mm x 20.73mm) |
| Height - Seated (Max) | 0.896" (22.75mm) |
Submit your RFQ for IHDM1008BCEV3R0M20 and get a quote within 24 hours.
