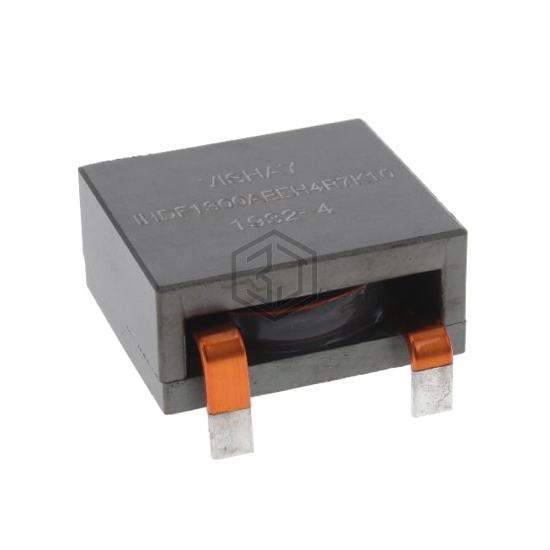

FIXED IND 4.7UH 59A 1.11 MOHM TH
IHDF1300AEEH4R7K10 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 4.7UH 59A 1.11 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 59 A.
In Stock: 235
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 59 A |
| Current - Saturation (Isat) | 92A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.11mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 16MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.299" L x 1.299" W (33.00mm x 33.00mm) |
| Height - Seated (Max) | 0.606" (15.40mm) |
Submit your RFQ for IHDF1300AEEH4R7K10 and get a quote within 24 hours.
