FIXED IND 1UH 72A 0.79 MOHM TH

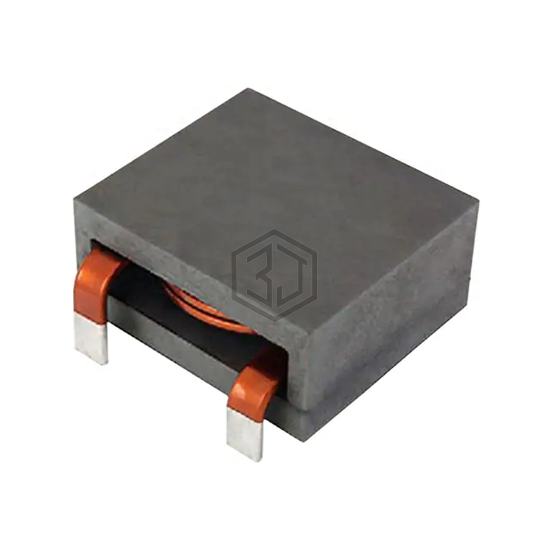

IHDF1300AEEH1R0K1A is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 1UH 72A 0.79 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 72 A.
In Stock: 185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 72 A |
| Current - Saturation (Isat) | 230A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.79mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 39MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.299" L x 1.173" W (33.00mm x 29.80mm) |
| Height - Seated (Max) | 0.606" (15.40mm) |
Submit your RFQ for IHDF1300AEEH1R0K1A and get a quote within 24 hours.
