FIXED IND 33UH 900MA 486MOHM SMD

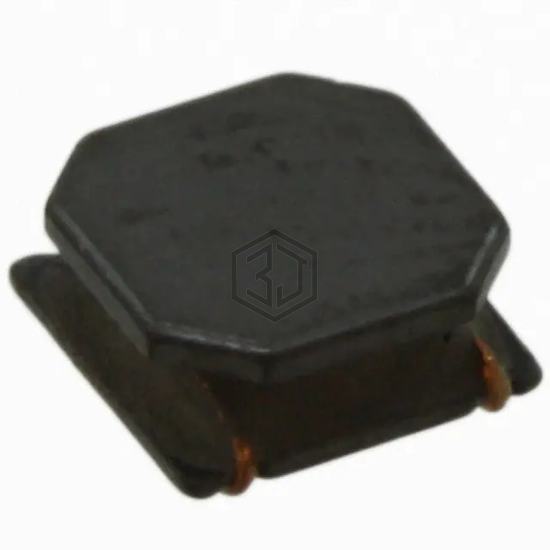

IFSC1515AHER330M01 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 33UH 900MA 486MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 900 mA.
In Stock: 16,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 680mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 486mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
Submit your RFQ for IFSC1515AHER330M01 and get a quote within 24 hours.
