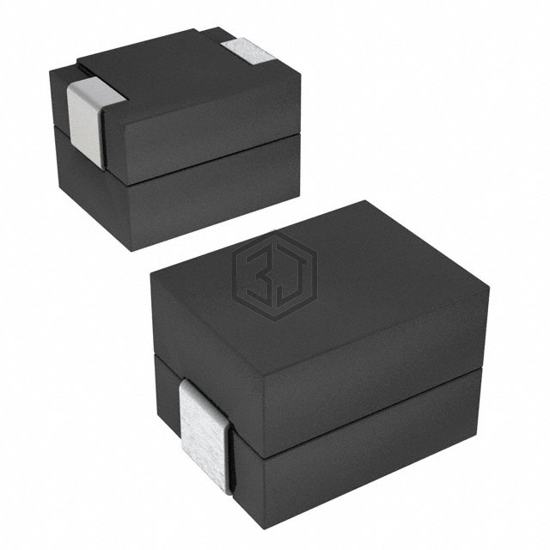

FIXED IND 170NH 61A 0.29MOHM SMD
IFLR4031GCERR17M01 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 170NH 61A 0.29MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2-SMD, J-Lead, current rating (amps) 61 A.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 170 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 61 A |
| Current - Saturation (Isat) | 60A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.29mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.409" W (8.00mm x 10.40mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
Submit your RFQ for IFLR4031GCERR17M01 and get a quote within 24 hours.
