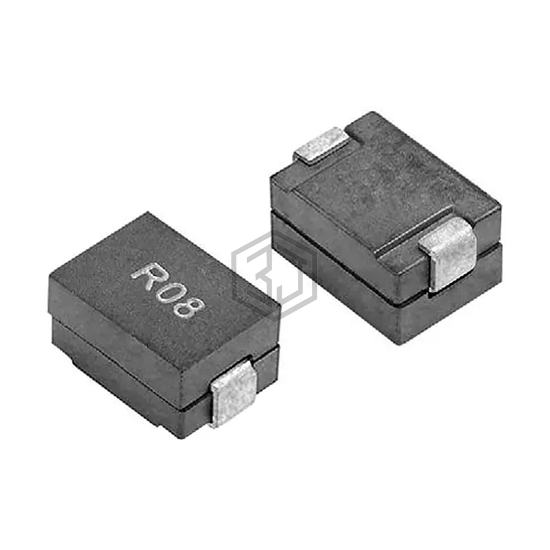

FIXED IND 85NH 50A 0.42 MOHM SMD
IFLR4027EZER85NM01 is a Fixed Inductors manufactured by Vishay Dale. FIXED IND 85NH 50A 0.42 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2-SMD, J-Lead, current rating (amps) 50 A.
In Stock: 403
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 85 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 50 A |
| Current - Saturation (Isat) | 70A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.42mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.402" W (7.00mm x 10.20mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for IFLR4027EZER85NM01 and get a quote within 24 hours.
