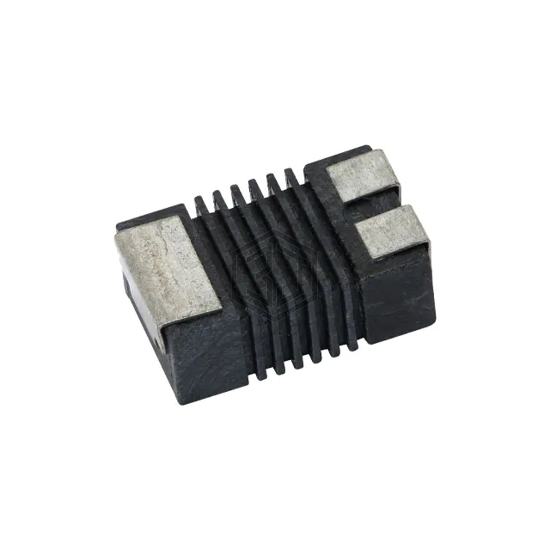

CDMM, 20M0, 1%, 250:1, RATIO TOL
CDMM20M0F2500DET is a Resistor Networks, Arrays manufactured by Vishay Dale. CDMM, 20M0, 1%, 250:1, RATIO TOL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case 4527 J-Lead, size / dimension 0.455" L x 0.275" W (11.56mm x 6.98mm).
In Stock: 239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 20M |
| Tolerance | ±1% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.5% |
| Resistor-Ratio-Drift | - |
| Number of Pins | 3 |
| Power Per Element | 750mW |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Automotive AEC-Q200, Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |
| Package / Case | 4527 J-Lead |
| Supplier Device Package | 4527 |
| Size / Dimension | 0.455" L x 0.275" W (11.56mm x 6.98mm) |
| Height - Seated (Max) | 0.177" (4.49mm) |
Submit your RFQ for CDMM20M0F2500DET and get a quote within 24 hours.
