RES NTWRK

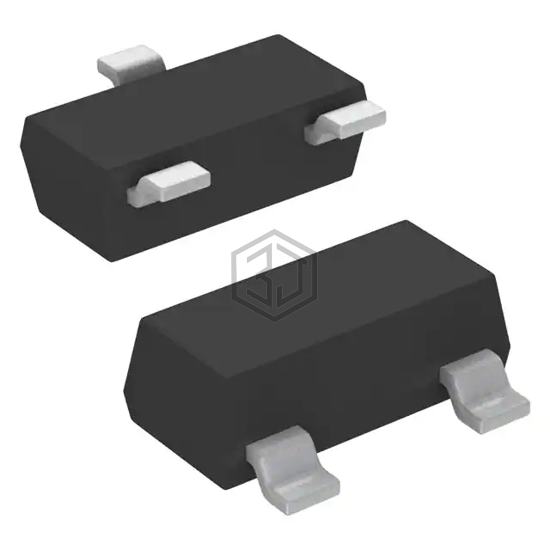

MPMA10012002AT1 is a Resistor Networks, Arrays manufactured by Vishay Dale Thin Film. RES NTWRK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case TO-236-3, SC-59, SOT-23-3, size / dimension 0.113" L x 0.051" W (2.86mm x 1.30mm).
In Stock: 180
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 1k, 20k |
| Tolerance | ±0.1% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.05% |
| Resistor-Ratio-Drift | ±2ppm/°C |
| Number of Pins | 3 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Automotive AEC-Q200, Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Size / Dimension | 0.113" L x 0.051" W (2.86mm x 1.30mm) |
| Height - Seated (Max) | 0.044" (1.12mm) |
Submit your RFQ for MPMA10012002AT1 and get a quote within 24 hours.
