MAGNETICALLY SHIELDED FULLRANGE

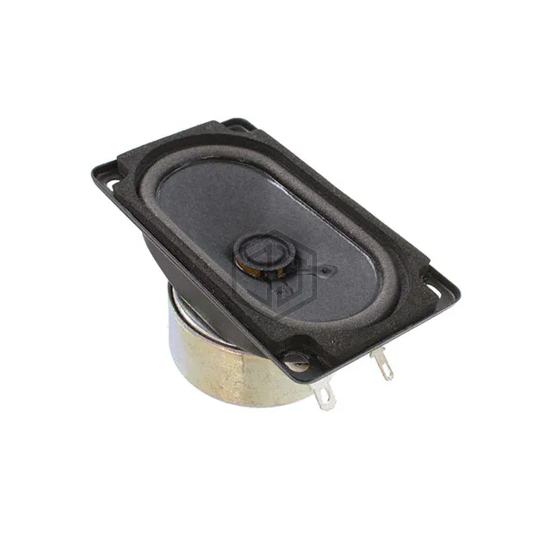

SC 5.9 - 8 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. MAGNETICALLY SHIELDED FULLRANGE. Key specifications: size / dimension 3.563" L x 1.988" W (90.50mm x 50.50mm), termination Quick Connect, power - max 15 W, frequency range 130 Hz ~ 20 kHz.
In Stock: 3,978
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 130 Hz ~ 20 kHz |
| Frequency - Self Resonant | - |
| Impedance | 8 Ohms |
| Efficiency - dBA | 84.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 10 W |
| Power - Max | 15 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | - |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Quick Connect |
| Size / Dimension | 3.563" L x 1.988" W (90.50mm x 50.50mm) |
| Height - Seated (Max) | 1.693" (43.00mm) |
