SC 4.7 ND - 8 OHM

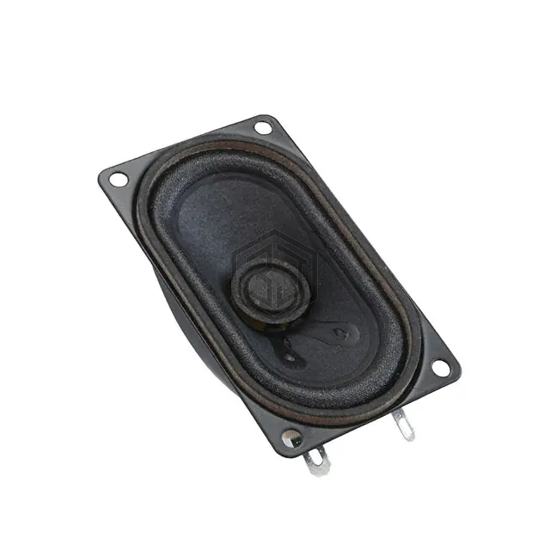

SC 4.7 ND - 8 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. SC 4.7 ND - 8 OHM. Key specifications: size / dimension 2.776" L x 1.634" W (70.50mm x 41.50mm), termination Quick Connect, power - max 4 W, frequency range 220 Hz ~ 20 kHz.
In Stock: 465
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 220 Hz ~ 20 kHz |
| Frequency - Self Resonant | 360Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 81.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 2 W |
| Power - Max | 4 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | - |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Quick Connect |
| Size / Dimension | 2.776" L x 1.634" W (70.50mm x 41.50mm) |
| Height - Seated (Max) | 1.083" (27.50mm) |
