FULL-RANGE SPEAKER

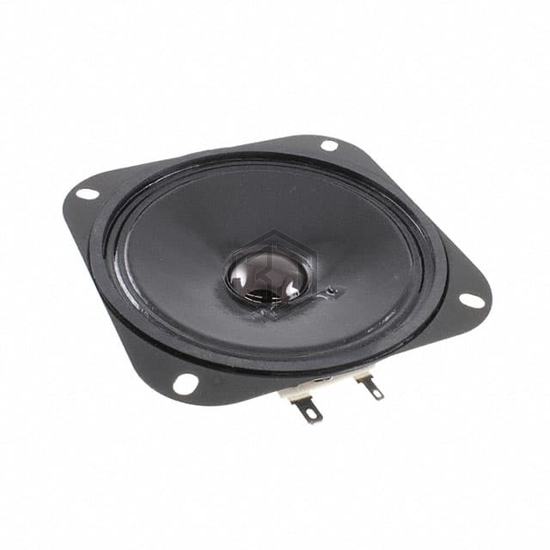

R 10 ND - 8 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. FULL-RANGE SPEAKER. Key specifications: size / dimension 4.016" L x 4.016" W (102.00mm x 102.00mm), termination Quick Connect, ingress protection Waterproof, power - max 20 W.
In Stock: 54
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 120 Hz ~ 16 kHz |
| Frequency - Self Resonant | 165Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 84.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | - |
| Power - Max | 20 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | - |
| Material - Magnet | - |
| Ingress Protection | Waterproof |
| Ratings | - |
| Termination | Quick Connect |
| Size / Dimension | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
Submit your RFQ for R 10 ND - 8 OHM and get a quote within 24 hours.
