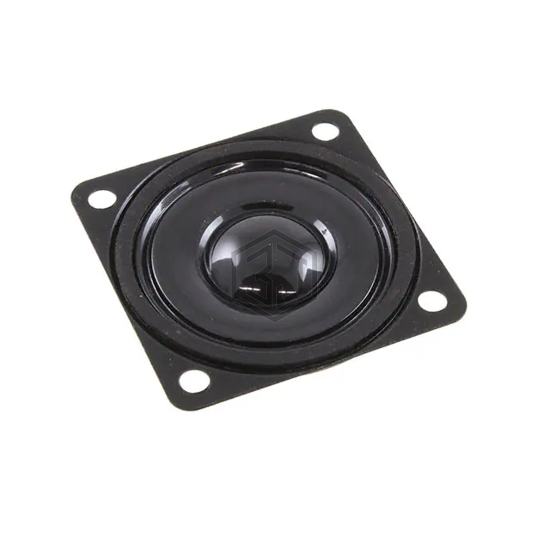

K 40 SQ - 8 OHM
K 40 SQ - 8 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. K 40 SQ - 8 OHM. Key specifications: size / dimension 1.575" L x 1.575" W (40.00mm x 40.00mm), termination Solder Pads, power - max 1 W, frequency range 300 Hz ~ 20 kHz.
In Stock: 357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | - |
| Type | General Purpose |
| Frequency Range | 300 Hz ~ 20 kHz |
| Frequency - Self Resonant | 520Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.575" L x 1.575" W (40.00mm x 40.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
Submit your RFQ for K 40 SQ - 8 OHM and get a quote within 24 hours.
