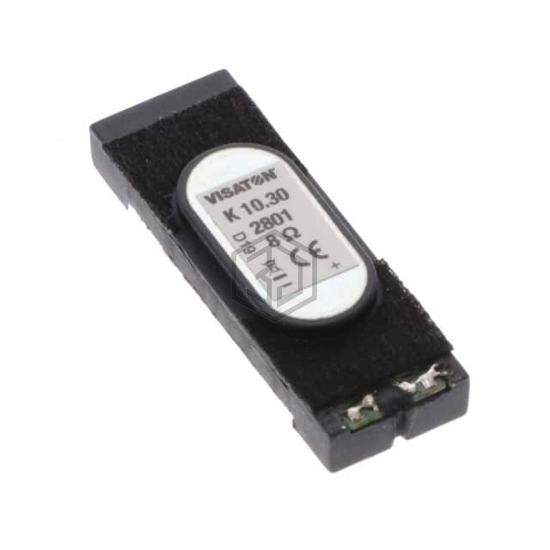

K 10.30 - 8 OHM
K 10.30 - 8 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. K 10.30 - 8 OHM. Key specifications: size / dimension 1.181" L x 0.394" W (30.00mm x 10.00mm), termination Solder Pads, power - max 1 W, frequency range 750 Hz ~ 20 kHz.
In Stock: 113
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 750 Hz ~ 20 kHz |
| Frequency - Self Resonant | 1.2kHz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 85.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.181" L x 0.394" W (30.00mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for K 10.30 - 8 OHM and get a quote within 24 hours.
