FR 9.15 - 4 OHM
FR 9.15 - 4 OHM

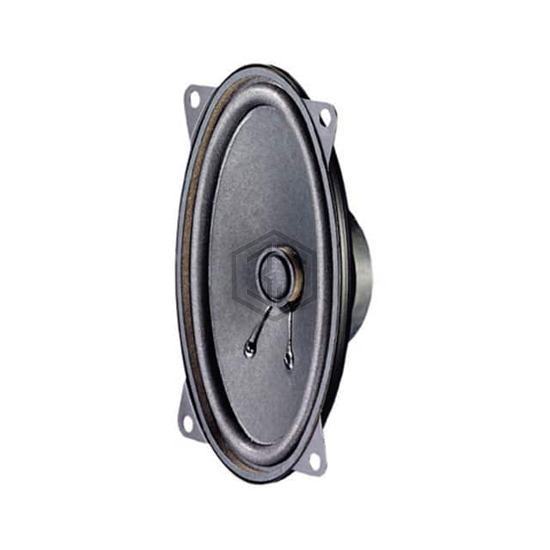

FR 9.15 - 4 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. FR 9.15 - 4 OHM. Key specifications: termination Quick Connect, power - max 30 W, frequency range 75 Hz ~ 16 kHz, impedance 4 Ohms.
In Stock: 14
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 75 Hz ~ 16 kHz |
| Frequency - Self Resonant | 120Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 85.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 15 W |
| Power - Max | 30 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | - |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Quick Connect |
| Size / Dimension | - |
| Height - Seated (Max) | 1.417" (36.00mm) |
Frequently Asked Questions
FR 9.15 - 4 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. FR 9.15 - 4 OHM
The termination type of FR 9.15 - 4 OHM is Quick Connect.
The power rating of FR 9.15 - 4 OHM is 30 W.
The frequency of FR 9.15 - 4 OHM is 75 Hz ~ 16 kHz.
The resistance of FR 9.15 - 4 OHM is 4 Ohms.
