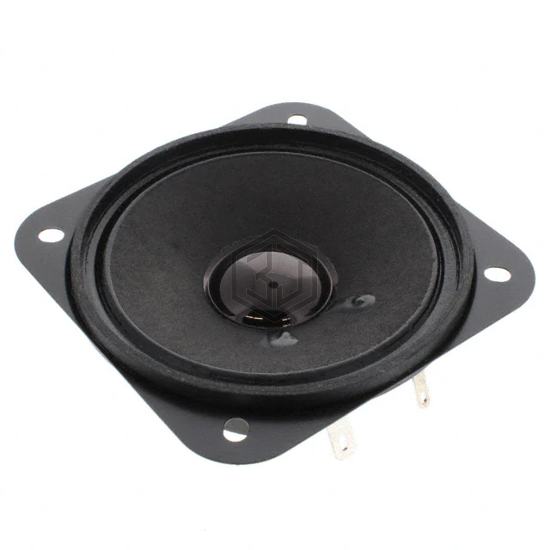

FR 77- 8 OHM - Visaton GmbH & Co. KG - Speakers

FR 77- 8 OHM

Visaton GmbH & Co. KG

FULL-RANGE SPEAKER

FR 77- 8 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. FULL-RANGE SPEAKER. Key specifications: size / dimension 3.031" L x 3.031" W (77.00mm x 77.00mm), termination Quick Connect, power - max 7 W, frequency range 150 Hz ~ 20 kHz.

In Stock: 87

Product Attributes

AttributeValue
Product StatusActive
Technology-
TypeGeneral Purpose
Frequency Range150 Hz ~ 20 kHz
Frequency - Self Resonant250Hz
Impedance8 Ohms
Efficiency - dBA87.00
Efficiency - Testing1W/1M
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated5 W
Power - Max7 W
Port LocationTop
ShapeRound, Square Frame
Material - Cone-
Material - Magnet-
Ingress Protection-
Ratings-
TerminationQuick Connect
Size / Dimension3.031" L x 3.031" W (77.00mm x 77.00mm)
Height - Seated (Max)1.319" (33.50mm)

Frequently Asked Questions

FR 77- 8 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. FULL-RANGE SPEAKER

The size of FR 77- 8 OHM is 3.031" L x 3.031" W (77.00mm x 77.00mm).

The termination type of FR 77- 8 OHM is Quick Connect.

The power rating of FR 77- 8 OHM is 7 W.

The resistance of FR 77- 8 OHM is 8 Ohms.
