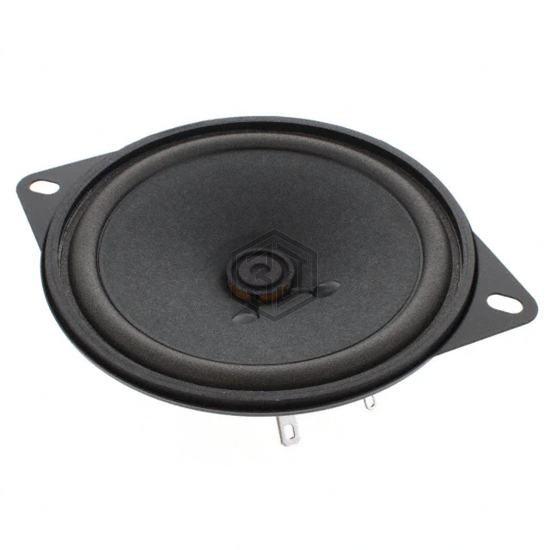

FR 10 F - 4 OHM - Visaton GmbH & Co. KG - Speakers

FR 10 F - 4 OHM

Visaton GmbH & Co. KG

FULL-RANGE SPEAKER

FR 10 F - 4 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. FULL-RANGE SPEAKER. Key specifications: size / dimension 3.996" Dia (101.50mm), termination Quick Connect, power - max 30 W, frequency range 100 Hz ~ 22 kHz.

In Stock: 48

Product Attributes

AttributeValue
Product StatusActive
Technology-
TypeGeneral Purpose
Frequency Range100 Hz ~ 22 kHz
Frequency - Self Resonant133Hz
Impedance4 Ohms
Efficiency - dBA86.00
Efficiency - Testing1W/1M
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated20 W
Power - Max30 W
Port LocationTop
ShapeRound
Material - Cone-
Material - Magnet-
Ingress Protection-
Ratings-
TerminationQuick Connect
Size / Dimension3.996" Dia (101.50mm)
Height - Seated (Max)1.417" (36.00mm)

Frequently Asked Questions

FR 10 F - 4 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. FULL-RANGE SPEAKER

The size of FR 10 F - 4 OHM is 3.996" Dia (101.50mm).

The termination type of FR 10 F - 4 OHM is Quick Connect.

The power rating of FR 10 F - 4 OHM is 30 W.

The resistance of FR 10 F - 4 OHM is 4 Ohms.
