MAGNETICALLY SHIELDED FULL-RANGE

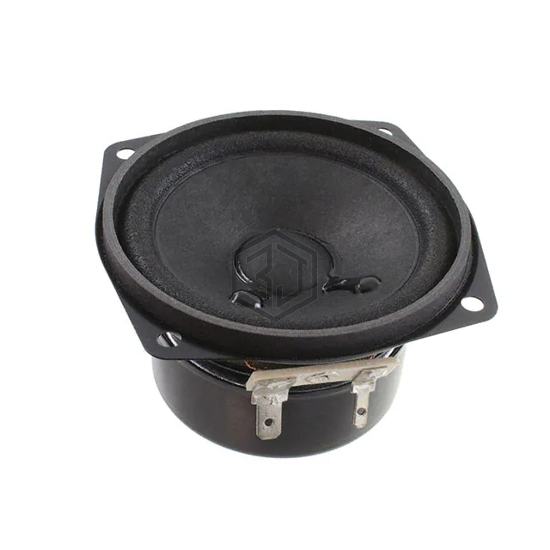

F 8 SC - 8 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. MAGNETICALLY SHIELDED FULL-RANGE. Key specifications: size / dimension 5.846" Dia x 3.091" L (148.50mm x 78.50mm), termination Quick Connect, power - max 30 W, frequency range 80 Hz ~ 15 kHz.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 80 Hz ~ 15 kHz |
| Frequency - Self Resonant | 125Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 20 W |
| Power - Max | 30 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | - |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Quick Connect |
| Size / Dimension | 5.846" Dia x 3.091" L (148.50mm x 78.50mm) |
| Height - Seated (Max) | 1.831" (46.50mm) |
Submit your RFQ for F 8 SC - 8 OHM and get a quote within 24 hours.
