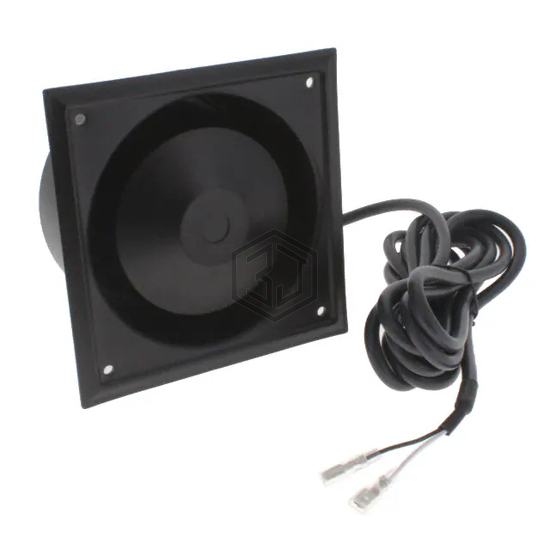

RE-ENTRANT HORN SPEAKER
DK 121 - 8 OHM is a Speakers manufactured by Visaton GmbH & Co. KG. RE-ENTRANT HORN SPEAKER. Key specifications: size / dimension 3.996" Dia x 4.764" L (101.50mm x 121.00mm), termination Wire Leads, ingress protection Waterproof, power - max 15 W.
In Stock: 4,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | - |
| Type | General Purpose |
| Frequency Range | 570 Hz ~ 4.4 kHz |
| Frequency - Self Resonant | - |
| Impedance | 8 Ohms |
| Efficiency - dBA | 104.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 10 W |
| Power - Max | 15 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Polypropylene (PP) |
| Material - Magnet | - |
| Ingress Protection | Waterproof |
| Ratings | - |
| Termination | Wire Leads |
| Size / Dimension | 3.996" Dia x 4.764" L (101.50mm x 121.00mm) |
| Height - Seated (Max) | 3.465" (88.00mm) |
