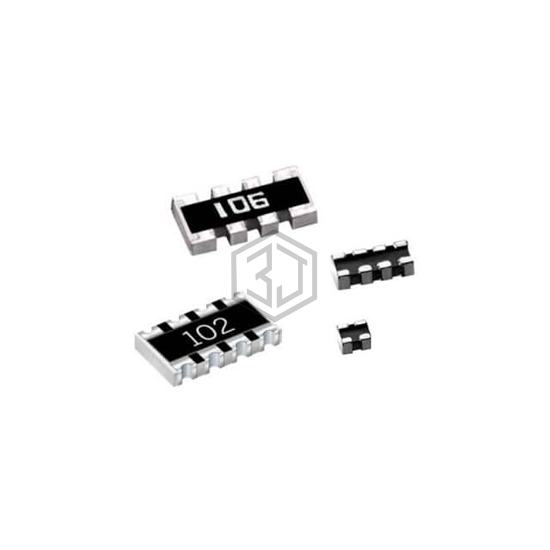

0201*2 5% ARRAY CONVEX 56R
CN-21JL6---56R is a Resistor Networks, Arrays manufactured by Viking Tech. 0201*2 5% ARRAY CONVEX 56R. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0302 (0805 Metric), Convex, Long Side Terminals, size / dimension 0.031" L x 0.024" W (0.80mm x 0.60mm).
In Stock: 2,918
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 56 |
| Tolerance | ±5% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 4 |
| Power Per Element | 31mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 0302 (0805 Metric), Convex, Long Side Terminals |
| Supplier Device Package | 0302 |
| Size / Dimension | 0.031" L x 0.024" W (0.80mm x 0.60mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| YC104-JR-0756RL | YAGEO | RES ARRAY 4 RES 56 OHM 0602 | 87% | View |
| S41C083560JP | CTS Resistor Products | RES ARRAY, CONCAVE, 4 RES 0402, | 86% | View |
| EXB-34V560JV | Panasonic Electronic Components | RES ARRAY 2 RES 56 OHM 0606 | 69% | View |
| TC124-FR-0756RL | YAGEO | RES ARRAY 4 RES 56 OHM 0804 | 56% | View |
| RPS164PJ560CS | Samsung Electro-Mechanics | RESISTOR ARRAY CONVEX 0603X4R | 56% | View |
| 753083560GPTR7 | CTS Resistor Products | RES ARRAY 4 RES 56 OHM 8SRT | 56% | View |
