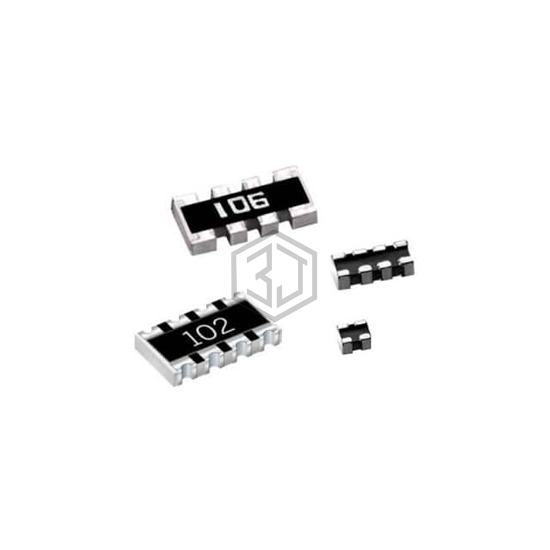

0201*2 5% ARRAY CONVEX15R
CN-21JL6---15R is a Resistor Networks, Arrays manufactured by Viking Tech. 0201*2 5% ARRAY CONVEX15R. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0302 (0805 Metric), Convex, Long Side Terminals, size / dimension 0.031" L x 0.024" W (0.80mm x 0.60mm).
In Stock: 6,937
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 15 |
| Tolerance | ±5% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 4 |
| Power Per Element | 31mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 0302 (0805 Metric), Convex, Long Side Terminals |
| Supplier Device Package | 0302 |
| Size / Dimension | 0.031" L x 0.024" W (0.80mm x 0.60mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| YC102-JR-0715RL | YAGEO | RES ARRAY 2 RES 15 OHM 0302 | 100% | View |
| 741X043150JP | CTS Resistor Products | RES ARRAY 2 RES 15 OHM 0404 | 69% | View |
| RK102PJ150CS | Samsung Electro-Mechanics | RESISTOR ARRAY SHORT-FREE & INV | 69% | View |
| EXB-28N150JX | Panasonic Electronic Components | RES ARRAY 4 RES 15 OHM 0804 | 56% | View |
| YC324-FK-0715RL | YAGEO | RES ARRAY 4 RES 15 OHM 2012 | 56% | View |
| EXB-S8V150J | Panasonic Electronic Components | RES ARRAY | 56% | View |
Submit your RFQ for CN-21JL6---15R and get a quote within 24 hours.
