DC/DC CONVERTER 28V 1.3KW

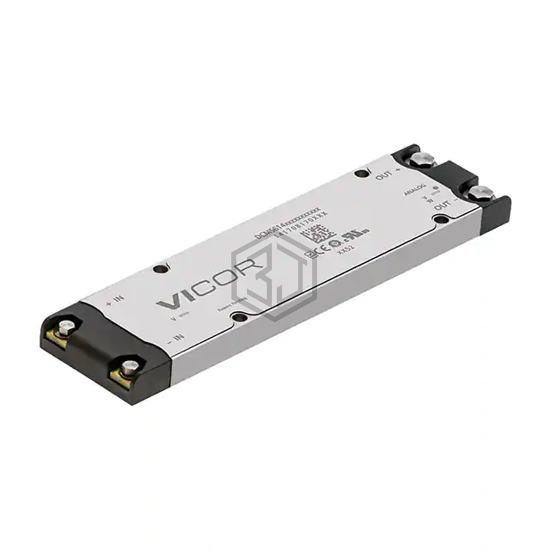

DCM5614VD0H36K3T02 is a DC DC Converters manufactured by Vicor Corporation. DC/DC CONVERTER 28V 1.3KW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (With Derating), current - output (max) 46.43A, size / dimension 5.57" L x 1.40" W x 0.37" H (141.5mm x 35.6mm x 9.4mm).
In Stock: 9,077
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 180V |
| Voltage - Input (Max) | 400V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 46.43A |
| Power (Watts) | 1.3kW |
| Voltage - Isolation | 2.121 kV |
| Applications | ITE (Commercial) |
| Efficiency | 93.7% |
| Operating Temperature | -40°C ~ 125°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.57" L x 1.40" W x 0.37" H (141.5mm x 35.6mm x 9.4mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DCM5614VD0H36K3T02 and get a quote within 24 hours.
