DC/DC CONVERTER 12V 500W

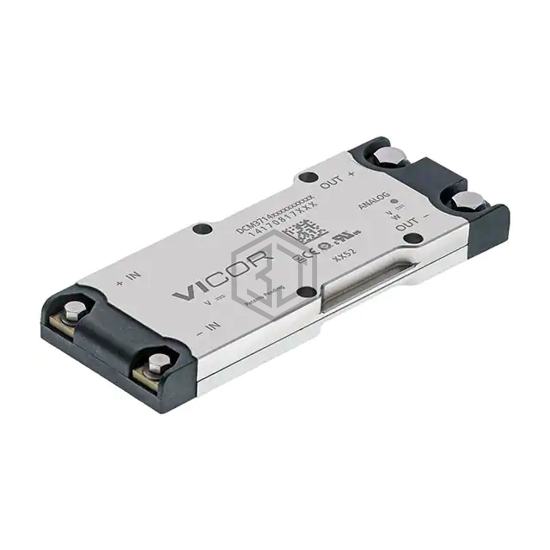

DCM3714VD2K13E0T01 is a DC DC Converters manufactured by Vicor Corporation. DC/DC CONVERTER 12V 500W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 100°C, current - output (max) 41.67A, size / dimension 3.74" L x 1.40" W x 0.37" H (95.1mm x 35.5mm x 9.3mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 160V |
| Voltage - Input (Max) | 420V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 41.67A |
| Power (Watts) | 500W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.74" L x 1.40" W x 0.37" H (95.1mm x 35.5mm x 9.3mm) |
| Approval Agency | CE, cTUVus |
| Standard Number | - |
Submit your RFQ for DCM3714VD2K13E0T01 and get a quote within 24 hours.
