DC/DC CONVERTER 12V 400W

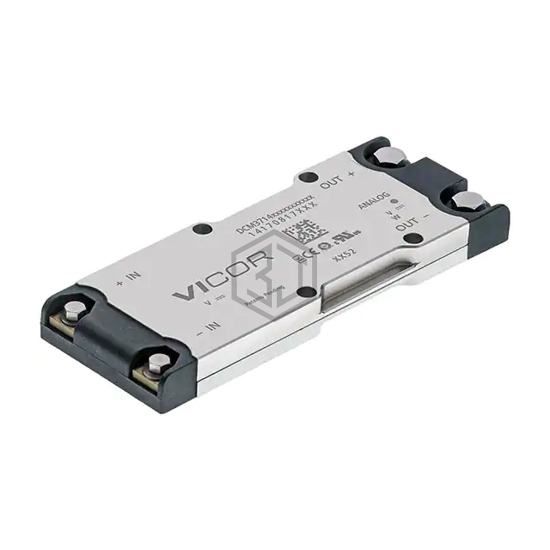

DCM3714VD2J13D0T01 is a DC DC Converters manufactured by Vicor Corporation. DC/DC CONVERTER 12V 400W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 100°C, current - output (max) 33.3A, size / dimension 3.75" L x 1.40" W x 0.37" H (95.1mm x 35.5mm x 9.3mm).
In Stock: 6,648
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 200V |
| Voltage - Input (Max) | 400V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 33.3A |
| Power (Watts) | 400W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 93.2% |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.75" L x 1.40" W x 0.37" H (95.1mm x 35.5mm x 9.3mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DCM3714VD2J13D0T01 and get a quote within 24 hours.
