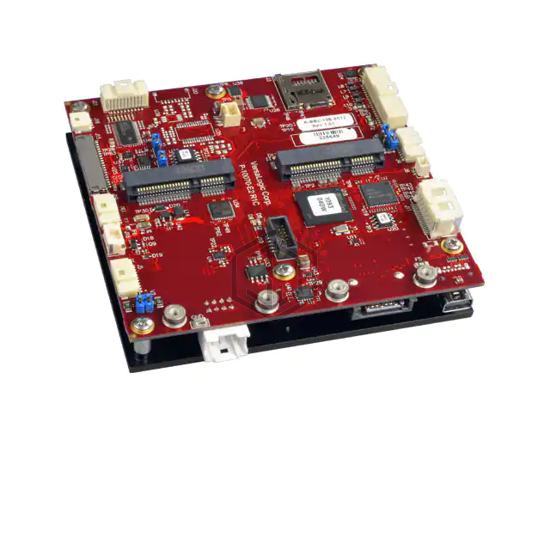

SBC ATOM E3950 1.6 GHZ 8GB ECC E
VL-EPU-4012-EDP-08X-32 is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by VersaLogic Corporation. SBC ATOM E3950 1.6 GHZ 8GB ECC E. Key specifications: operating temperature -40°C ~ 85°C, size / dimension 3.74" x 3.74" (95mm x 95mm), power (watts) 10.1W.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | Atom E3950 |
| Speed | 1.6GHz |
| Number of Cores | 4 |
| Power (Watts) | 10.1W |
| Cooling Type | Heat Plate |
| Size / Dimension | 3.74" x 3.74" (95mm x 95mm) |
| Form Factor | EPU |
| Expansion Site/Bus | I²C, SPI |
| RAM Capacity/Installed | 8GB/32GB |
| Storage Interface | SATA, Mini PCIe/mSATA |
| Video Outputs | LVDS, Mini Display Port |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 (5), USB 3.0 (1) |
| RS-232 (422, 485) | 4 |
| Digital I/O Lines | 8 |
| Analog Input:Output | 8:0 |
| Watchdog Timer | Yes |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for VL-EPU-4012-EDP-08X-32 and get a quote within 24 hours.
