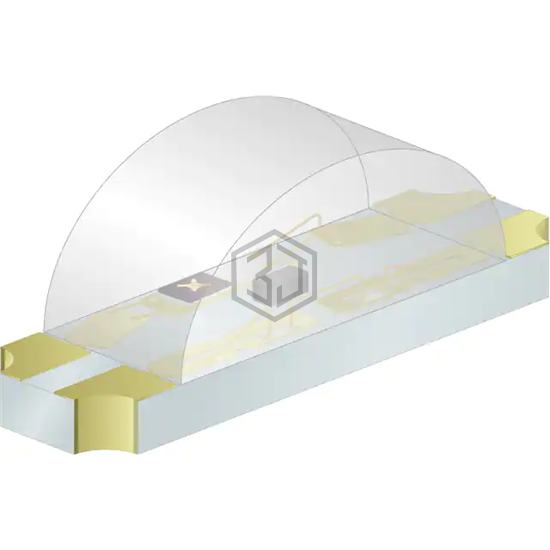

MULTI-COLOR LED 1204 R/A LENS RG
MCL1204RRGB1T is a LED Indication - Discrete manufactured by Venkel. MULTI-COLOR LED 1204 R/A LENS RG. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.3V Green, 3.3V Blue, package / case 1204 (3010 Metric), color Red, Green, Blue (RGB).
In Stock: 11,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 112.5mcd Red, 285mcd Green, 45mcd Blue |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue |
| Features | - |
| Package / Case | 1204 (3010 Metric) |
| Supplier Device Package | 1204 |
| Size / Dimension | 3.00mm L x 1.00mm W |
| Height (Max) | 2.10mm |
Submit your RFQ for MCL1204RRGB1T and get a quote within 24 hours.
