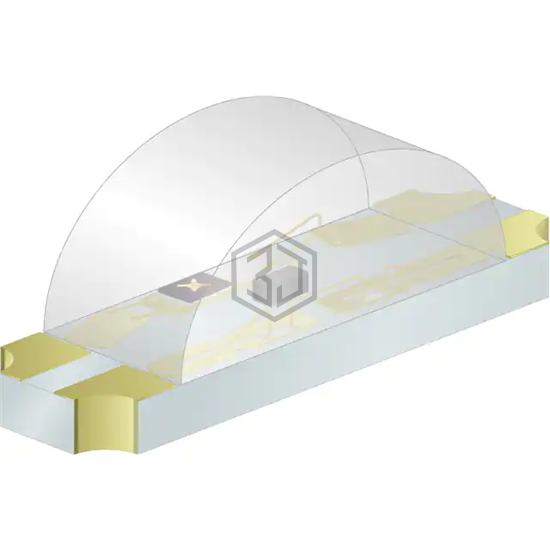

MULTI-COLOR LED 1204 R/A LENS
MCL1204RRD1GR1T is a LED Indication - Discrete manufactured by Venkel. MULTI-COLOR LED 1204 R/A LENS. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.6V Red, 1.6V Green, package / case 1204 (3210 Metric), color Green, Red.
In Stock: 9,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 45mcd Red, 45mcd Green |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 1.6V Red, 1.6V Green |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 631nm Red, 571nm Green |
| Wavelength - Peak | 639nm Red, 573nm Green |
| Features | - |
| Package / Case | 1204 (3210 Metric) |
| Supplier Device Package | 1204 |
| Size / Dimension | 3.00mm L x 1.00mm W |
| Height (Max) | 2.10mm |
Submit your RFQ for MCL1204RRD1GR1T and get a quote within 24 hours.
