MULTI-COLOR LED 0404 FLAT LENS R

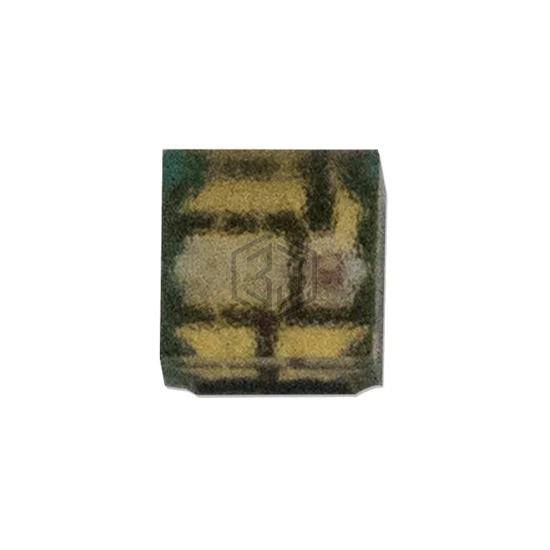

MCL0404FRGB1U is a LED Indication - Discrete manufactured by Venkel. MULTI-COLOR LED 0404 FLAT LENS R. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.7V Green, 2.8V Blue, package / case 0404 (1010 Metric), color Red, Green, Blue (RGB).
In Stock: 14,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 87mcd Red, 180mcd Green, 40mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 1.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.7V Green, 2.8V Blue |
| Current - Test | 10mA Red, 5mA Green, 5mA Blue |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | 629nm Red, 522nm Green, 465nm Blue |
| Features | - |
| Package / Case | 0404 (1010 Metric) |
| Supplier Device Package | 0404 |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Height (Max) | 0.65mm |
Submit your RFQ for MCL0404FRGB1U and get a quote within 24 hours.
