LCD MOD 40DIG 20X2 TRANSFLCT GRN

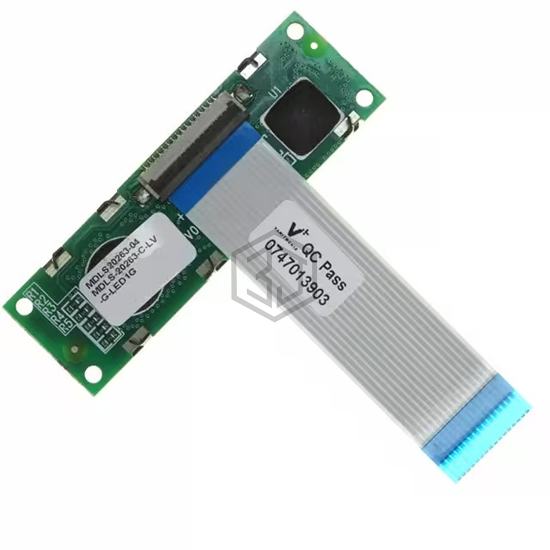

MDLS-20263-C-LV-G-LED01G is a Display Modules - LCD, OLED Character and Numeric manufactured by Varitronix. LCD MOD 40DIG 20X2 TRANSFLCT GRN. Key specifications: operating temperature -5°C ~ 50°C, voltage - supply 4.75V ~ 5.25V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 7,770
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 40 |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 3.15mm H x 1.85mm W |
| Outline L x W x H | 65.00mm x 20.00mm x 8.00mm |
| Viewing Area | 46.00mm L x 10.00mm W |
| Backlight | LED - Green |
| Voltage - Supply | 4.75V ~ 5.25V |
| Dot Size | 0.33mm W x 0.35mm H |
| Interface | Parallel |
| Controller Type | - |
| Operating Temperature | -5°C ~ 50°C |
| Text Color | - |
| Background Color | - |
Submit your RFQ for MDLS-20263-C-LV-G-LED01G and get a quote within 24 hours.
