LCD MOD 20DIG 20X1 TRANSFLCT GRN

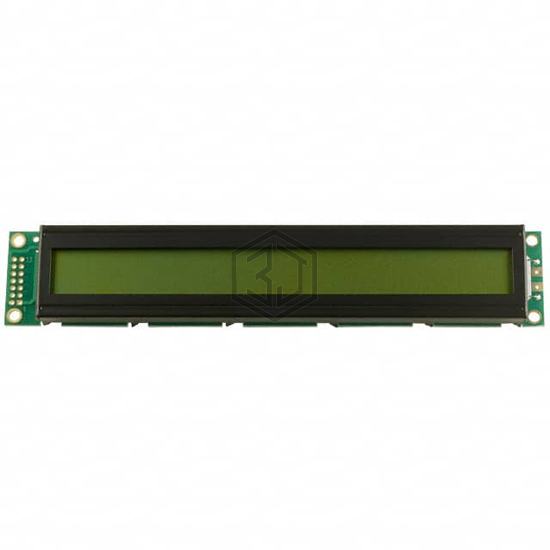

MDLS-20189-SS-LV-G-LED-04-G is a Display Modules - LCD, OLED Character and Numeric manufactured by Varitronix. LCD MOD 20DIG 20X1 TRANSFLCT GRN. Key specifications: operating temperature -5°C ~ 50°C, voltage - supply 5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 8,930
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Characters | 20 |
| Display Format | 20 x 1 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 9.40mm H x 6.70mm W |
| Outline L x W x H | 182.00mm x 33.50mm x 11.00mm |
| Viewing Area | 154.00mm L x 15.30mm W |
| Backlight | LED - Green |
| Voltage - Supply | 5V |
| Dot Size | 1.30mm W x 1.30mm H |
| Interface | Parallel |
| Controller Type | - |
| Operating Temperature | -5°C ~ 50°C |
| Text Color | - |
| Background Color | Green |
Submit your RFQ for MDLS-20189-SS-LV-G-LED-04-G and get a quote within 24 hours.
