IC OFFLINE SW FULL-BRG 20TSSOP

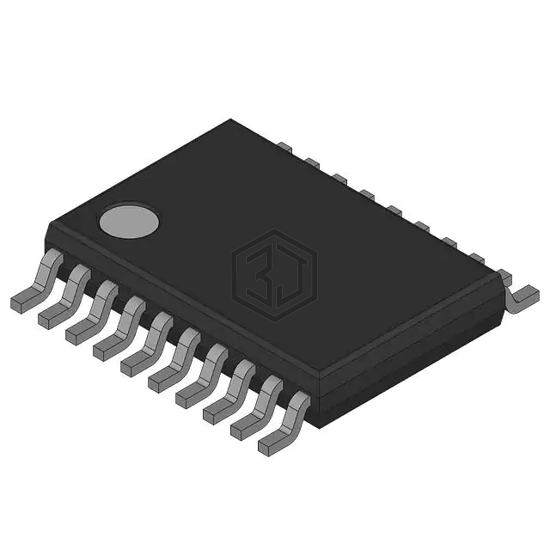

UCC3895PWTR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. IC OFFLINE SW FULL-BRG 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 10V ~ 16.5V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 1,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM |
| Function | - |
| Output Configuration | Positive |
| Topology | Phase-Shifted Full-Bridge |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 16.5V |
| Frequency - Switching | 1MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | - |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start, Sync |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC2895PWTR | Texas Instruments | IC OFFLINE SW FULL-BRG 20TSSOP | 100% | View |
| UCC2895DWTR | Texas Instruments | IC OFFLINE SW FULL-BRDG 20SOIC | 100% | View |
| UCC2895DW | Texas Instruments | IC OFFLINE SW FULL-BRDG 20SOIC | 100% | View |
| UCC3895DWTR | Texas Instruments | IC OFFLINE SW FULL-BRDG 20SOIC | 100% | View |
| UCC2895QDWRQ1 | Texas Instruments | IC OFFLINE SW FULL-BRDG 20SOIC | 100% | View |
| UCC3895DWTRG4 | Texas Instruments | IC OFFLINE SW FULL-BRDG 20SOIC | 100% | View |
Submit your RFQ for UCC3895PWTR and get a quote within 24 hours.
