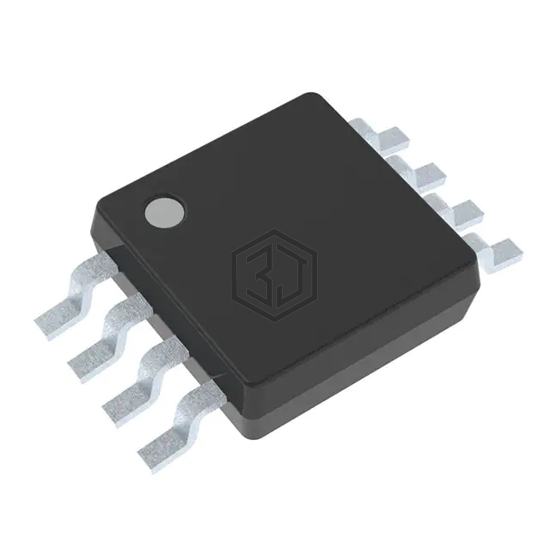

UCC35705 HIGH SPEED VOLTAGE MODE
UCC35705DGK is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. UCC35705 HIGH SPEED VOLTAGE MODE. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 8.2V ~ 15V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 2,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Boost, Flyback, Forward Converter |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.2V ~ 15V |
| Frequency - Switching | 1MHz |
| Duty Cycle (Max) | 93% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC25705DTR | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 8SOIC | 100% | View |
| UCC35705D | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 8SOIC | 100% | View |
| UCC25705DGK | Texas Instruments | IC REG CTRLR MULT TOP 8VSSOP | 100% | View |
| UCC25705DGKTR | Texas Instruments | IC REG CTRLR MULT TOP 8VSSOP | 100% | View |
| UCC35705DTR | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 8SOIC | 100% | View |
| UCC35705DGKG4 | Unitrode | UCC35705 HIGH SPEED VOLTAGE MODE | 100% | View |
Submit your RFQ for UCC35705DGK and get a quote within 24 hours.
