0.00065A, 2000KHZ BICMOS, PDSO20

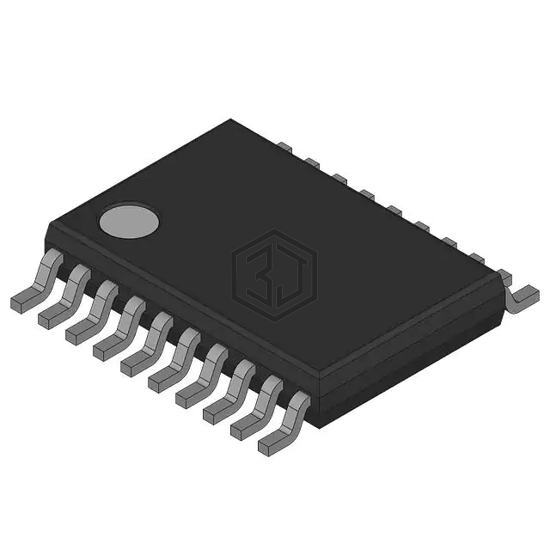

UCC29422PW is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. 0.00065A, 2000KHZ BICMOS, PDSO20. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 8V, package / case 16-TSSOP (0.173", 4.40mm Width).
In Stock: 1,860
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 8V |
| Frequency - Switching | 150kHz ~ 1.2MHz |
| Duty Cycle (Max) | 88% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Low Battery, Reset |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC29421PW | Texas Instruments | IC REG CTRLR MULT TOP 16TSSOP | 100% | View |
| NCV887100D1R2G | onsemi | IC REG CTRLR BOOST/FLYBACK 8SOIC | 88% | View |
| MAX797ESE+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOP 16SOIC | 88% | View |
| MAX797ESE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOP 16SOIC | 88% | View |
| MAX15158ZATJ+T | Analog Devices Inc./Maxim Integrated | HV MULTIPHASE BOOST CONTROLLER | 58% | View |
| MAX15158ZATJ+ | Analog Devices Inc./Maxim Integrated | IC HV BOOST CONTROL | 58% | View |
Submit your RFQ for UCC29422PW and get a quote within 24 hours.
