SWITCHING CONTROLLER, VOLTAGE-MO

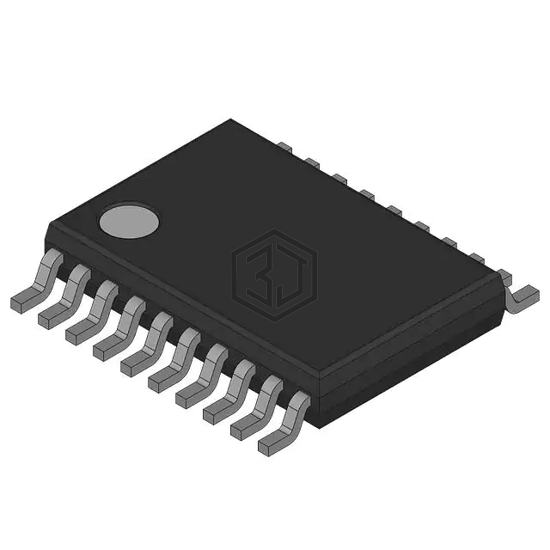

UCC2897PW is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. SWITCHING CONTROLLER, VOLTAGE-MO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 8.5V ~ 14.5V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 3,228
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Flyback, Forward Converter |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 14.5V |
| Frequency - Switching | 250kHz |
| Duty Cycle (Max) | 74% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, On Time Control, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC2897ARGPT | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 20QFN | 100% | View |
| UCC2897APWR | Texas Instruments | IC REG CTRLR MULT TOP 20TSSOP | 100% | View |
| UCC2897PW-TI | Texas Instruments | SWITCHING CONTROLLER, VOLTAGE-MO | 100% | View |
| UCC2897APW | Texas Instruments | IC REG CTRLR MULT TOP 20TSSOP | 100% | View |
| NCP1562BDBR2G | onsemi | IC REG CTRLR FWRD CONV 16TSSOP | 80% | View |
| NCP1562ADBR2G | onsemi | IC REG CTRLR FWRD CONV 16TSSOP | 80% | View |
Submit your RFQ for UCC2897PW and get a quote within 24 hours.
