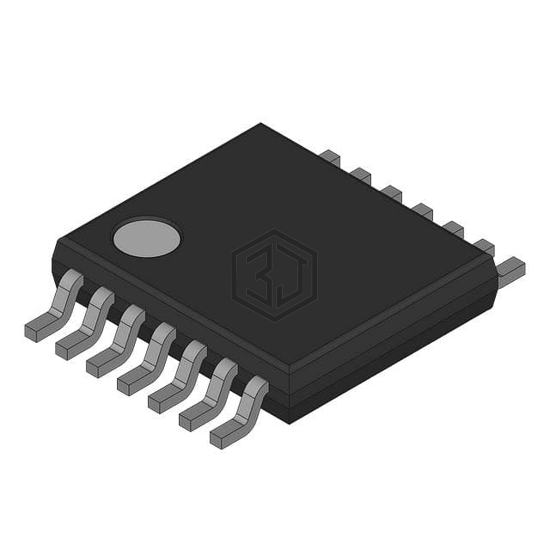

HALF BRIDGE BASED MOSFET DRIVER
UCC27221PWP is a PMIC - Gate Drivers manufactured by Unitrode. HALF BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 115°C (TJ), voltage - supply 3.7V ~ 20V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 180
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 3.7V ~ 20V |
| Logic Voltage - VIL, VIH | 0.7V, 2.6V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 17ns, 17ns |
| Operating Temperature | -55°C ~ 115°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 14-HTSSOP |
UCC27221PWP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCC27222PWP | Texas Instruments | IC GATE DRVR HALF-BRIDG 14HTSSOP | 100% | View |
| UCC27222PWPR | Unitrode | UCC27222 HIGH-EFFICIENCY PREDICT | 100% | View |
| FAN3214TMX | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 89% | View |
| FAN3213TMX-F085 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 89% | View |
| FAN3213TMX | Fairchild Semiconductor | FULL BRIDGE BASED PERIPHERAL DRI | 89% | View |
| FAN3216TMX-F085 | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 88% | View |
Submit your RFQ for UCC27221PWP and get a quote within 24 hours.
