SWITCHING CONTROLLER, VOLTAGE-MO

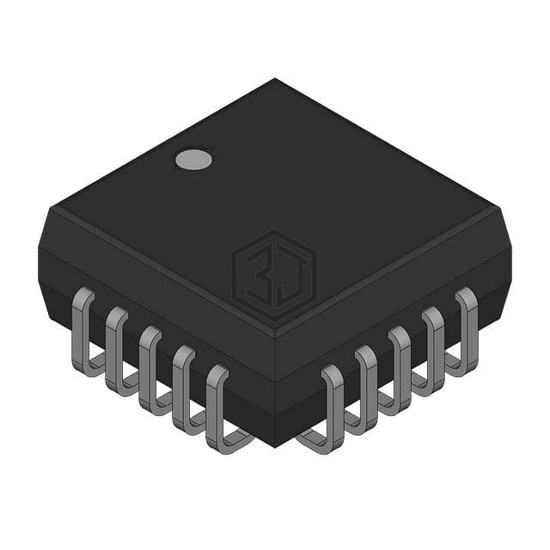

UC3825AQ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. SWITCHING CONTROLLER, VOLTAGE-MO. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 8.4V ~ 22V, package / case 20-LCC (J-Lead).
In Stock: 84
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 22V |
| Frequency - Switching | 400kHz ~ 1MHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Frequency Control, Ramp, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UC2825AQDWREP | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 100% | View |
| UC2825ADWTR | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 100% | View |
| UC1825AVTD2 | Texas Instruments | IC REG CTRLR MULT TOPOLOGY DIE | 100% | View |
| UC3823ADW | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 92% | View |
| UC3823ADWTR | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 92% | View |
| LM5122ZAPWPR | Texas Instruments | IC POWER REGULATOR | 80% | View |
Submit your RFQ for UC3825AQ and get a quote within 24 hours.
