BUFFER/INVERTER BASED MOSFET DRI

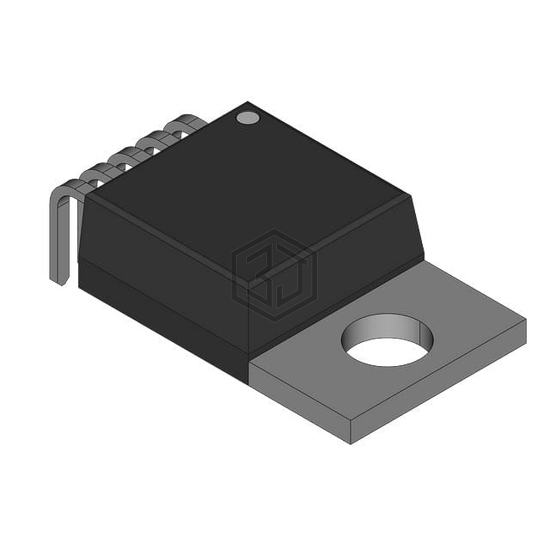

UC3705T-UN is a PMIC - Gate Drivers manufactured by Unitrode. BUFFER/INVERTER BASED MOSFET DRI. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply 5V ~ 40V, package / case TO-220-5.
In Stock: 10,188
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 5V ~ 40V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2 V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 60ns, 60ns |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4627CPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 90% | View |
| TC4626EPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 90% | View |
| TC4626CPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 90% | View |
| TC4627EPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 90% | View |
| TC4432CPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 88% | View |
| TC4431VPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 88% | View |
Submit your RFQ for UC3705T-UN and get a quote within 24 hours.
