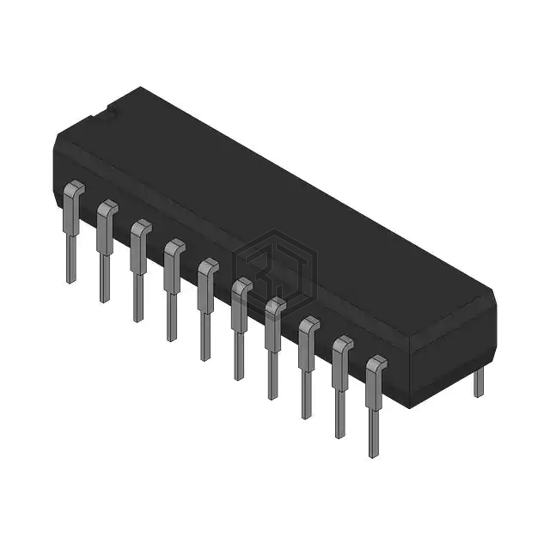

IC OFFLINE SW FULL-BRDG 20DIP
UC2875NG4 is a PMIC - AC DC Converters, Offline Switchers manufactured by Unitrode. IC OFFLINE SW FULL-BRDG 20DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 9.5V ~ 20V, package / case 20-DIP (0.300", 7.62mm).
In Stock: 8,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | - |
| Voltage - Breakdown | - |
| Topology | Full-Bridge |
| Voltage - Start Up | 10.75 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
| Duty Cycle | 100% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting |
| Control Features | Frequency Control, Soft Start, Sync |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UC2875N | Texas Instruments | IC OFFLINE SW FULL-BRDG 20DIP | 100% | View |
| UCC3813N-2 | Unitrode | IC OFFLINE SWITCH MULT TOP 8DIP | 96% | View |
| UCC2808AN-1 | Unitrode | IC OFFLINE SWITCH MULT TOP 8DIP | 96% | View |
| UCC2807N-2 | Unitrode | IC OFFLINE SWITCH MULT TOP 8DIP | 96% | View |
| UC3823BN | Unitrode | IC OFFLINE SWITCH MULT TOP 16DIP | 94% | View |
| UCC3809N-2 | Unitrode | IC OFFLINE SWITCH MULT TOP 8DIP | 93% | View |
Submit your RFQ for UC2875NG4 and get a quote within 24 hours.
