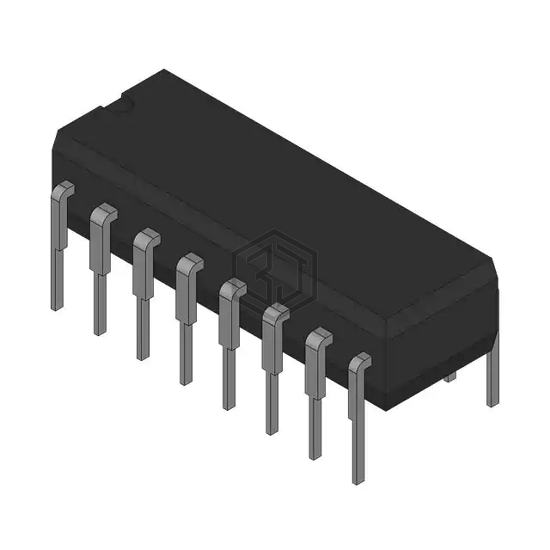

UC2856 IMPROVED CURRENT MODE PWM
UC2856N is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. UC2856 IMPROVED CURRENT MODE PWM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 7V ~ 40V, package / case 16-DIP (0.300", 7.62mm).
In Stock: 107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 40V |
| Frequency - Switching | 200kHz |
| Duty Cycle (Max) | 47% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
