BUFFER/INVERTER BASED MOSFET DRI

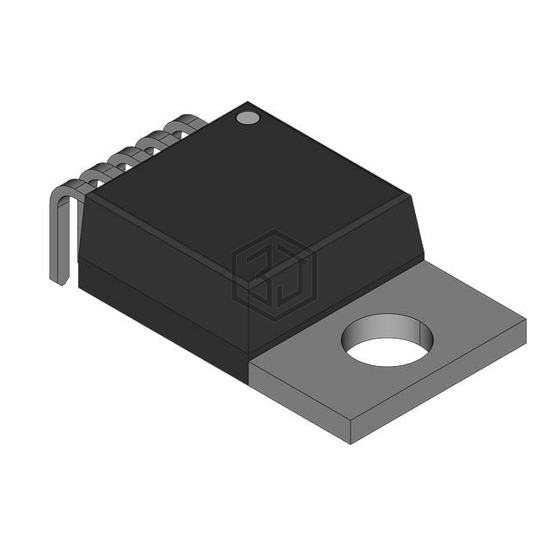

UC2710T is a PMIC - Gate Drivers manufactured by Unitrode. BUFFER/INVERTER BASED MOSFET DRI. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TJ), voltage - supply 4.7V ~ 18V, package / case TO-220-5.
In Stock: 65
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 4.7V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 6A, 6A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 85ns, 85ns |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UC2710N | Unitrode | UC2710 COMPLEMENTARY HIGH CURREN | 100% | View |
| UC3710N | Texas Instruments | IC GATE DRVR LOW-SIDE 8DIP | 100% | View |
| TC4429VAT | Microchip Technology | IC GATE DRVR LOW-SIDE TO220-5 | 84% | View |
| TC4420MJA | Microchip Technology | IC GATE DRVR LOW-SIDE 8CERDIP | 84% | View |
| MCP1406-E/P | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 81% | View |
| MIC4420YN | Microchip Technology | IC GATE DRVR LOW-SIDE 8DIP | 79% | View |
Submit your RFQ for UC2710T and get a quote within 24 hours.
