SWITCHING CONTROLLER

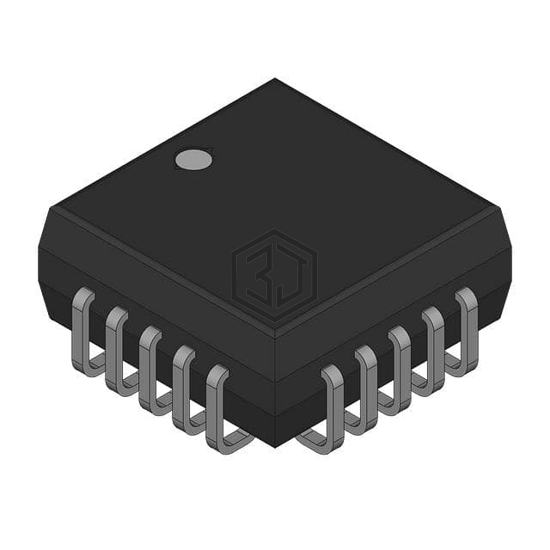

UC2526AQ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. SWITCHING CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 7V ~ 35V, package / case 20-LCC (J-Lead).
In Stock: 226
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 35V |
| Frequency - Switching | 1Hz ~ 600kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Reset, Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
UC2526AQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UC2526ADWTR | Texas Instruments | IC REG CTRLR MULT TOP 18SOIC | 100% | View |
| UC2526ADW | Texas Instruments | IC REG CTRLR MULT TOP 18SOIC | 100% | View |
| UC2526ADWG4 | Texas Instruments | IC REG CTRLR MULT TOP 18SOIC | 100% | View |
| UC2526AQG3 | Texas Instruments | IC REG CTRLR MULT TOP 20PLCC | 100% | View |
Submit your RFQ for UC2526AQ and get a quote within 24 hours.
