SWITCHING CONTROLLER, VOLTAGE-MO

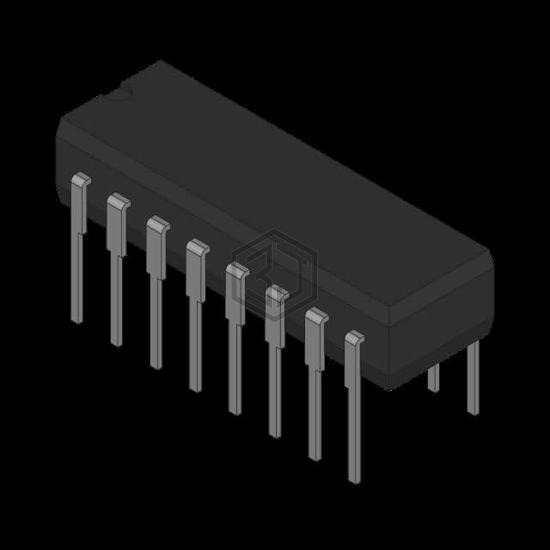

UC2525BJ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Unitrode. SWITCHING CONTROLLER, VOLTAGE-MO. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 8V ~ 35V, package / case 16-CDIP (0.300", 7.62mm).
In Stock: 2,825
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Buck, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Frequency - Switching | 100Hz ~ 400kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UC3525AN | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 16DIP | 100% | View |
| UC3525BN | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 16DIP | 100% | View |
| UC3527AN | Unitrode | UC3527A REGULATING PULSE WIDTH M | 100% | View |
| UC3527ANG4 | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 16DIP | 100% | View |
| UC3525ANG4 | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 16DIP | 100% | View |
Submit your RFQ for UC2525BJ and get a quote within 24 hours.
