750V/11MOHM, N-OFF SIC STACK CAS

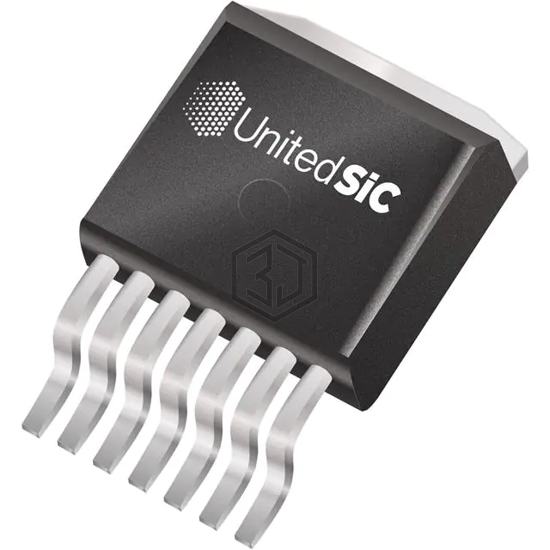

UJ4SC075011B7S is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. 750V/11MOHM, N-OFF SIC STACK CAS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 750 V |
| Current - Continuous Drain (Id) @ 25°C | 104A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Rds On (Max) @ Id, Vgs | 14.2mOhm @ 60A, 12V |
| Vgs(th) (Max) @ Id | 5.5V @ 10mA |
| Gate Charge (Qg) (Max) @ Vgs | 75 nC @ 15 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3245 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 357W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
Submit your RFQ for UJ4SC075011B7S and get a quote within 24 hours.
