1200V/53MOHM, SIC, FAST CASCODE,

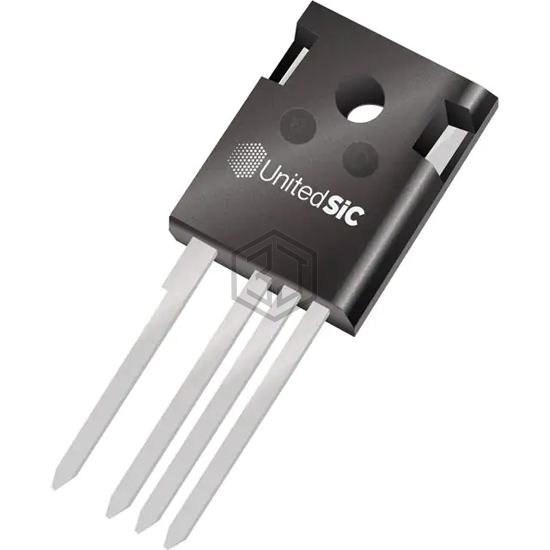

UF4C120053K4S is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. 1200V/53MOHM, SIC, FAST CASCODE,. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Cascode SiCJFET) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Rds On (Max) @ Id, Vgs | 67mOhm @ 20A, 12V |
| Vgs(th) (Max) @ Id | 6V @ 10mA |
| Gate Charge (Qg) (Max) @ Vgs | 37.8 nC @ 15 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1370 pF @ 800 V |
| FET Feature | - |
| Power Dissipation (Max) | 263W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4 |
| Package / Case | TO-247-4 |
Submit your RFQ for UF4C120053K4S and get a quote within 24 hours.
