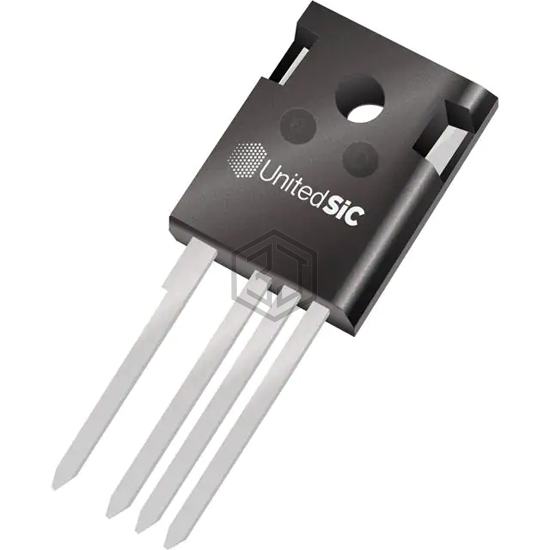

MOSFET N-CH 650V 31A TO247-4
UF3C065080K4S is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. MOSFET N-CH 650V 31A TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.
In Stock: 8,689
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | - |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 20A, 12V |
| Vgs(th) (Max) @ Id | 6V @ 10mA |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 12 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 190W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4 |
| Package / Case | TO-247-4 |
Submit your RFQ for UF3C065080K4S and get a quote within 24 hours.
