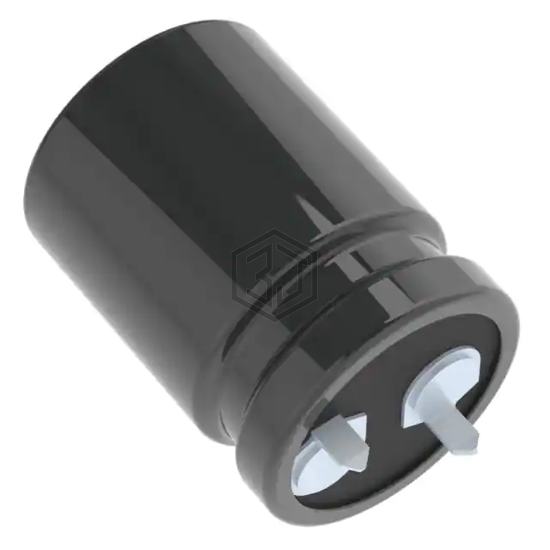

CAP ALUM 560UF 20% 200V SNAP
SMQ200VS561M22X30T2 is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,699
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.645 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
SMQ200VS561M22X30T2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305E2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 87% | View |
| 53D561F250JT7 | Vishay Sprague | CAP ALUM 560UF 250V AXIAL | 86% | View |
| ETXH201VSN561MR30S | United Chemi-Con | CAP ALUM 560UF 20% 200V SNAP | 77% | View |
| 450MXH560MEFCSN30X50 | Rubycon | CAP ALUM 560UF 20% 450V SNAP | 74% | View |
| 200SXC560MEFC30X30 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 74% | View |
| B43305A5567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 67% | View |
Submit your RFQ for SMQ200VS561M22X30T2 and get a quote within 24 hours.
